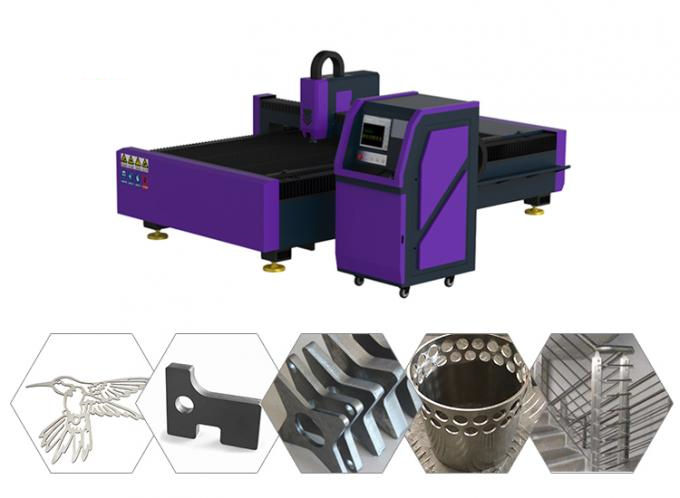

cnc metal cutting laser machine / fiber optic laser cutter

Podrobnosti produkta

Certifikacija: CE / ISO / FDA / SGS / TUV
Pogoji plačila in pošiljanja:
Najmanjša količina naročila: 1
Cena: Po dogovoru
Podrobnosti embalaže: Leseni kovček
Čas dostave: 15 delovnih dni
Pogoji plačila: T / T, L / C, Western Union
Zmogljivost oskrbe: 2000 enot

Podroben opis izdelka

Ime izdelka:	Fiber laserski stroj za rezanje	Tip laserja:	Fiber laser
Laserska moč:	500-1000w	Delovno območje:	1500 * 3000 mm
Laserska valovna dolžina:	1070-1090nm	Napajanje:	380V / 50Hz
Garancija:	1 leto	Rezalna glava:	Raytools

^{Glavna konfiguracija in tehnična prednost}

^{1, Fiber laser cutting is the fastest process for thin sheet metal.
2, A "clean cut" surface quality is obtained.
3, Reflective materials like aluminium,copper and brass can be cut with ease.
4, Parts process cost is very low.
5, Little to no maintenance costs.
6, Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and protection glasses over long periods. There are no other consumable costs.
7. Resonator life is over 100,000 working hours}

^{Glavne značilnosti}

^{1.High stability: the world's top imported fiber laser, stable performance and service life of critical component up to 100,000 hours;
2. Hitro rezanje hitrosti prihrani delovni čas.
3. varčevanje z energijo in varstvo okolja;
4. Odlična kakovost svetlobnega žarka: majhna fokusna fakula, tanka linija rezanja, visoka delovna učinkovitost, najboljša kakovost obdelave.
5. zelo nizki stroški vzdrževanja: prenos optičnih vlaken, brez odsevne leče; lahko prihranite veliko stroškov vzdrževanja;
6. Izdelki enostavno upravljanje: ni treba prilagoditi optične poti;
7. Prožen svetlobni vodilni učinek: majhna velikost, kompaktna struktura in enostavno izpolnjevanje prilagodljivih proizvodnih zahtev.}

^{Tehnični parametri}

^{Product name}	^{Fiber laserski stroj za rezanje}
^{Tip laserja}	^{Fiber laser}
^{Working area(mm)}	^{13002500MM/15003000MM}
^{Rezalna glava}	^{Raytools Auto-Focus (Swiss)}
^{Laser power(W)}	^{500W/800W/1000W/1500W}
^{Driving and Transmission Way}	^{Servo Motor ,Gear Rack, Linear Guide Rail}
^{Največja hitrost teka}	^600m/min
^{Natančnost pozicioniranja}	^{≤ ± 0,05 mm}
^{Re-positioning Accuracy}	^≤±0.03mm
^{Working Power Supply}	^{AC220V±10% 50HZ/380V 50Hz}
^{Delovna miza}	^{Rack working platform}
^{Nadzorni sistem}	^{Cypcut nadzorni sistem}
^{Location System}	^{Red dot indicator}
^{Water Cooling System}	^{CW6300 Constant temperature water chiller}
^{Največji pospešek}	^1G
^Formats	^{BMP,DXF,PLT,DST,CDR,GPEG}
^{Cutting Depth}	^{According the power}
^{Whole machine weight}	^2800KG
^Prenos	^{Precise pinion and rack,dual-drive transmitting}

Uporaba izdelka

1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.
2.Since laser is transmitted by fiber, it is no need to maintenance or adjust the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
3.Large format cutting area meets the demands of various kinds of metal processing.1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.

Prijave

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing .
