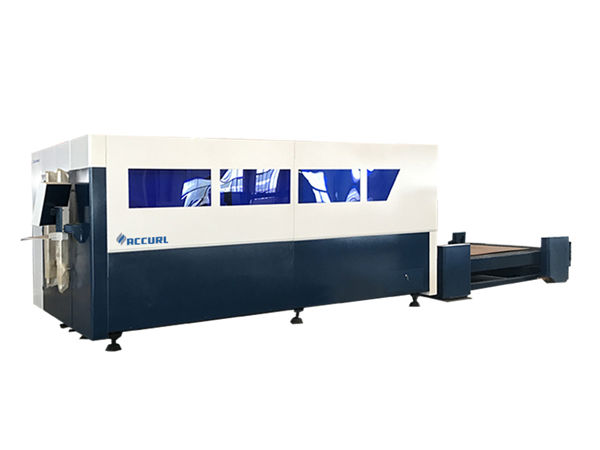

single platform cnc fiber laser cutting machine , metal sheet cutter

Podrobnosti produkta

Certifikacija: CE / ISO / FDA / SGS / TUV
Pogoji plačila in pošiljanja:
Najmanjša količina naročila: 1
Cena: Po dogovoru
Podrobnosti embalaže: Leseni kovček
Čas dostave: 15 delovnih dni
Pogoji plačila: T / T, L / C, Western Union
Zmogljivost oskrbe: 2000 enot

Podroben opis izdelka

Ime izdelka:	Fiber laserski stroj za rezanje	Tip laserja:	Fiber laser
Laserska moč:	500-1000w	Delovno območje:	1500 * 3000 mm
Laserska valovna dolžina:	1070-1090nm	Napajanje:	380V / 50Hz
Garancija:	1 leto	Rezalna glava:	Raytools

Glavna konfiguracija in tehnična prednost

Little to no maintenance costs
Parts process cost is very low
A "clean cut" surface quality is obtained
Fiber laser cutting is the fastest process for thin sheet metal
Reflective materials like aluminium,copper and brass can be cut with ease
Resonator life is over 100,000 working hours

^{Glavne značilnosti}

^{1.High stability: the world's top imported fiber laser, stable performance and service life of critical component up to 100,000 hours;
2. Hitro rezanje hitrosti prihrani delovni čas.
3. varčevanje z energijo in varstvo okolja;
4. Odlična kakovost svetlobnega žarka: majhna fokusna fakula, tanka linija rezanja, visoka delovna učinkovitost, najboljša kakovost obdelave.
5. zelo nizki stroški vzdrževanja: prenos optičnih vlaken, brez odsevne leče; lahko prihranite veliko stroškov vzdrževanja;
6. Izdelki enostavno upravljanje: ni treba prilagoditi optične poti;
7. Prožen svetlobni vodilni učinek: majhna velikost, kompaktna struktura in enostavno izpolnjevanje prilagodljivih proizvodnih zahtev.}

^{Tehnični parametri}

^{Product name}	^{Fiber laserski stroj za rezanje}
^{Tip laserja}	^{Fiber laser}
^{Working area(mm)}	^{13002500MM/15003000MM}
^{Rezalna glava}	^{Raytools Auto-Focus (Swiss)}
^{Laser power(W)}	^{500W/800W/1000W/1500W}
^{Driving and Transmission Way}	^{Servo Motor ,Gear Rack, Linear Guide Rail}
^{Največja hitrost teka}	^600m/min
^{Natančnost pozicioniranja}	^{≤ ± 0,05 mm}
^{Re-positioning Accuracy}	^≤±0.03mm
^{Working Power Supply}	^{AC220V±10% 50HZ/380V 50Hz}
^{Delovna miza}	^{Rack working platform}
^{Nadzorni sistem}	^{Cypcut nadzorni sistem}
^{Location System}	^{Red dot indicator}
^{Water Cooling System}	^{CW6300 Constant temperature water chiller}
^{Največji pospešek}	^1G
^Formats	^{BMP,DXF,PLT,DST,CDR,GPEG}
^{Cutting Depth}	^{According the power}
^{Whole machine weight}	^2800KG
^Prenos	^{Precise pinion and rack,dual-drive transmitting}

Descriptions	Parametri
Model	1530 Fiber laser cutting machine
Delovno območje	1500 * 3000 mm
Laserska moč	500W,1000W,15000W,2KW,3KW and so on, it depends on your demand.
Laser Wave Length	1064nm
Delovna miza	Žaga
Maximum Idle Running Speed	1200mm/s
Natančnost položaja	±0.05mm/m
Position Speed	20m / min
Minimum Line Width	± 0.02mm
Debelina rezanja	0-12mm
Nadzorni sistem	Cypcut
Position Type	red dot
Poraba energije	≤12KW
Working Voltage	380V / 50Hz
Auxiliary Gas	oxygen,nitrogen,air
Working life of fiber module	Več kot 100000 ur
Fiber laser cutting head	Lasermech made in USA
Fokusna leča	Lasermech made in USA
Driver system	1500W Fuji servo motor made in Japan
Liner guider system	PMI made in Taiwan , (Option THK made in Japan)
Prenosni sistem	Tip dvojnega stojala in zobnika
Reck sistem	made in Germany
Chain system	Igus made in Germany
Delivery time	15 days

Uporaba izdelka

1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.
2.Since laser is transmitted by fiber, it is no need to maintenance or adjust the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
3.Large format cutting area meets the demands of various kinds of metal processing.1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.

Prijave

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing .
